816016140

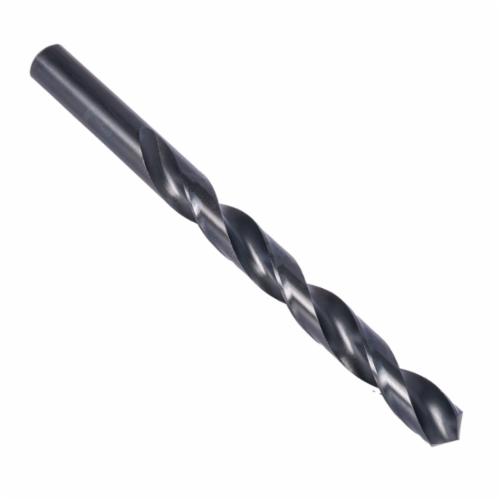

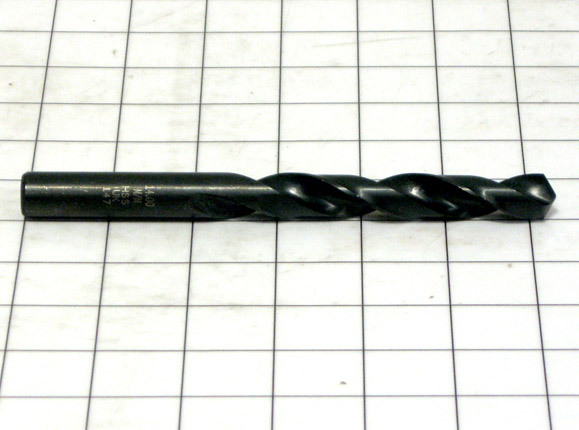

2AB 14.00MM HSS BLK;JOBBER LENGTH DRILL

Precision Twist Drill Jobber Length Drill Bit, General Purpose, Series: 2AB, Imperial/Metric, 14 mm Drill – Metric, 0.5512 in Drill – Decimal Inch, 160 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 108 mm Flute Length, 14 mm Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Tempered, Dark Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Alloyed Titanium, Unalloyed Nickel, Alloyed Nickel, Copper, Brass, Bronze, High Strength Bronze, Unalloyed Aluminum Magnesium, Alloyed Aluminum, Thermoplastics, Thermosetting Plastics, Reinforced Plastic Materials and Cermets

Weight 0.3092 kg
Dimensions 6.3779 × 0.9448 × 0.9448 cm
Bin Location 623C

Not Stocked

Bin Location 629C

0101B0200B

Siemens Part #

32267

UPC

086071161406

Vendor Part #

016140

zip_update_date

01/10/21

SKU: 816016140
