283530275

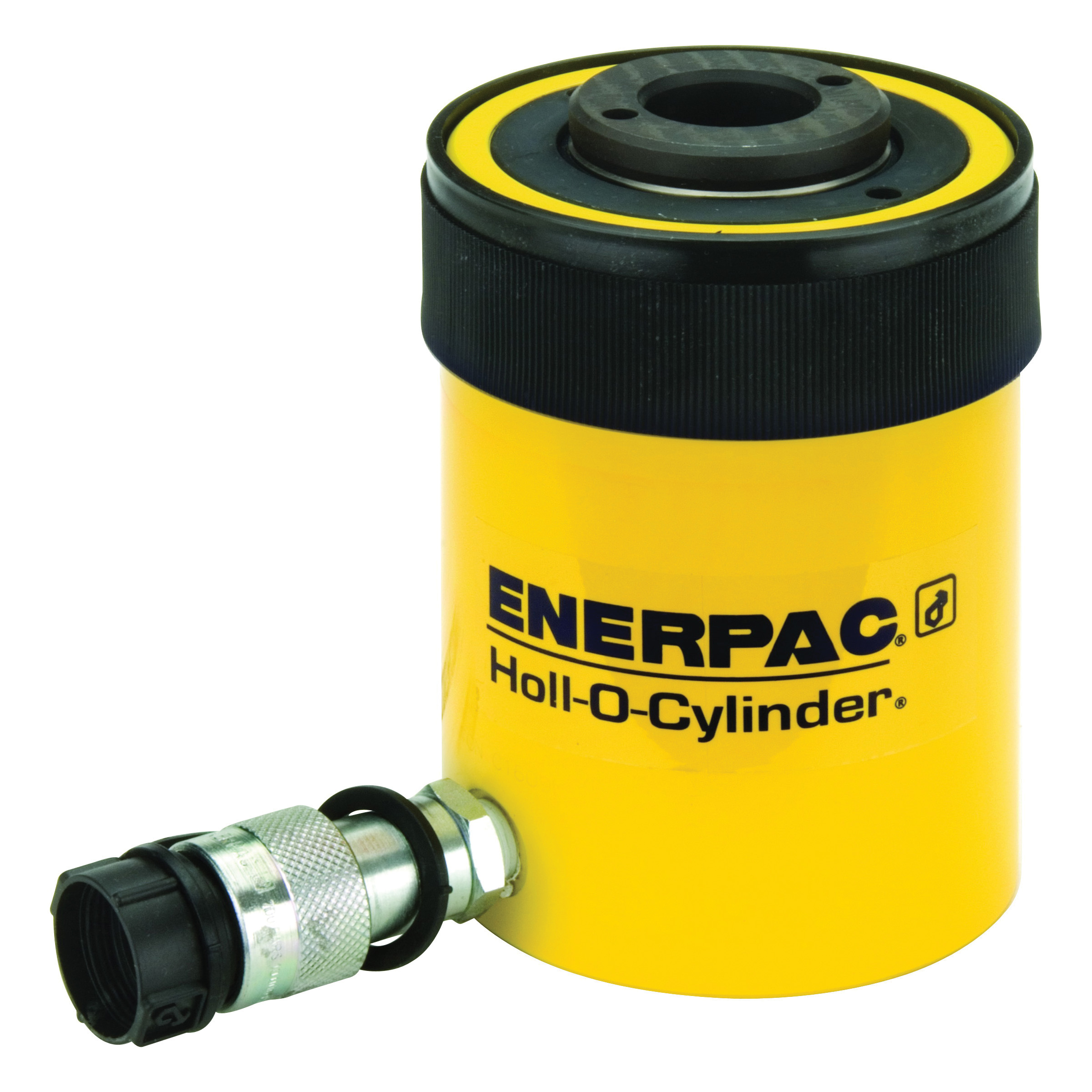

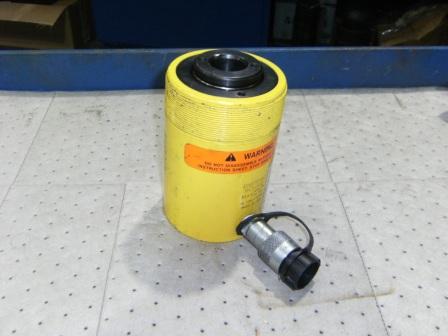

RCH-302 30 TON S/A;HOLL-O- CYLINDER
Enerpac Plunger Cylinder, Single Acting Spring Return, Series: RCH, 30 ton, 3-1/2 in Dia Bore, 2-1/2 in Stroke, 7.03 in H Retract, Base Mount, 2-1/2 in Rod Dia, 10000 psi, Steel Housing, Baked Enamel, 4-1/2 in OD
| Weight | 24.0 kg |
|---|---|
| Dimensions | 5.8 × 8.6 × 6.0 cm |
| Bin Location 623C | 010U00500B |
| Bin Location 629C | 0110A1300D |

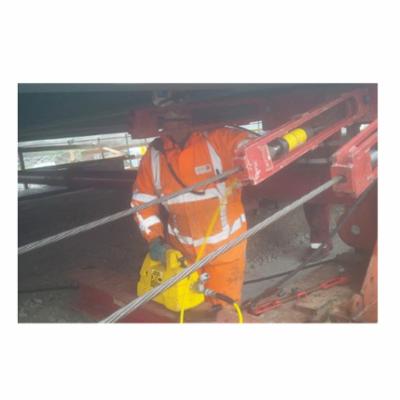

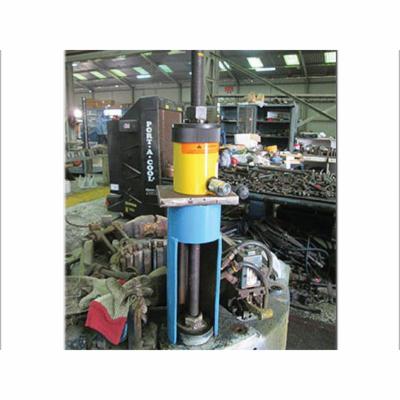

| Item Features | Baked enamel finish for increased corrosion resistance, Cylinders are nickel plated, floating center tube on models over 20 tons increases product life, Enerpac hollow plunger cylinders provide versatility in testing, maintenance and tensioning applications, The hollow plunger design allows for both pull and push forces |
| Siemens Part # | 78013023 |
| UPC | 662005302758 |
| Vendor Part # | 302758 |
| zip_update_date | 01/10/21 |
| siemens part 2 | 78011575 |
