283500258
RC-258 25 TON S/A;CYLINDER

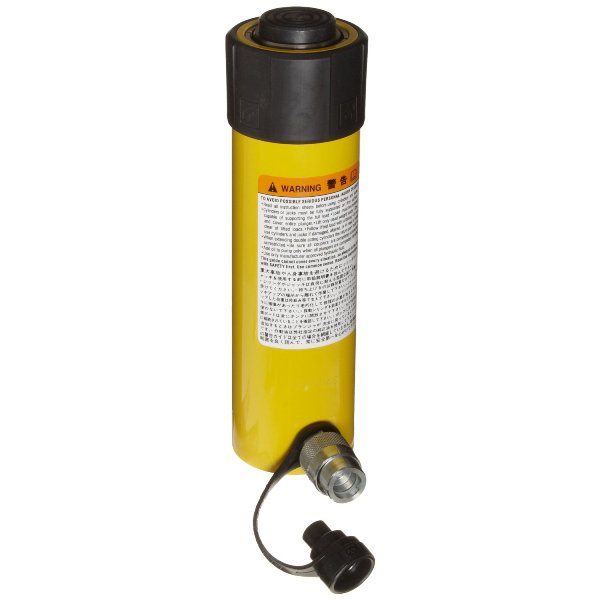

Enerpac Hydraulic Cylinder, DUO General Purpose Single Acting, Series: RC, 25 ton, 2.56 in Dia Bore, 8-1/4 in Stroke, 12-3/4 in H Retract, Base Mount, 2.56 in Rod Dia, 700 bar, Alloy Steel Housing, Baked Enamel, 3.38 in OD
| Weight | 27.0 kg |
|---|---|
| Dimensions | 8.0 × 21.0 × 5.7 cm |
| Bin Location 623C | 010U00600C |
| Bin Location 629C | 0112B0300D |
| Item Features | "Collar threads, plunger threads and base mounting holes enable easy fixturing", "Unique GR2 bearing design, reduces wear, extending life", Designed for use in all positions, Enerpac RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders |
| Siemens Part # | 78049502 |
| UPC | 662005301423 |
| Vendor Part # | 301423 |
| zip_update_date | 01/10/21 |
| siemens part 2 | 32185 |
