267949025

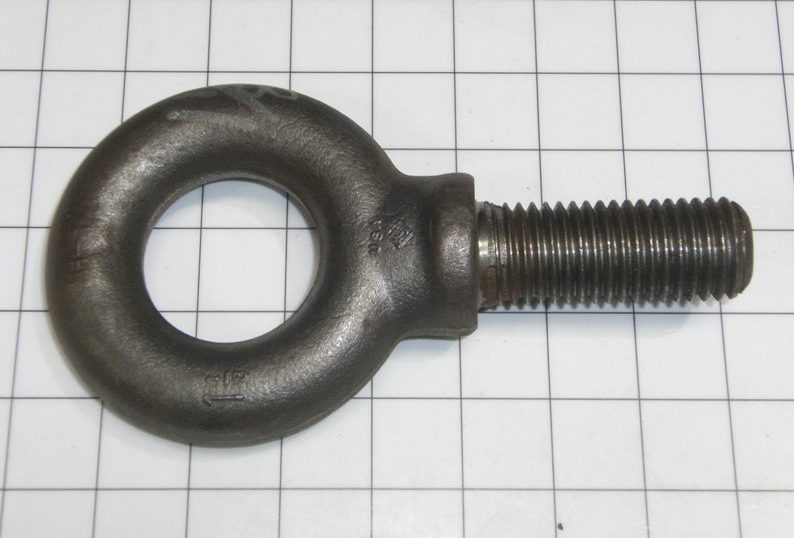

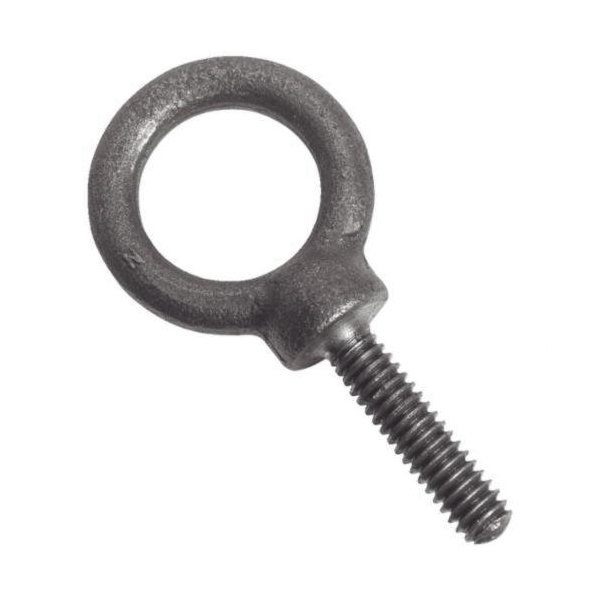

J94030 1-1/8″ SHOULDER;EYE BOLT
Proto Eye Bolt, Full Threaded Shoulder Pattern, Measurement System: Imperial, 1-1/8-7 Thread, 2-3/4 in Shank Length, Forged Steel, Plain, 1.94 to 2.06 in ID Eye, 4.06 in OD Eye, UNC-2A Thread, 7-3/4 in Overall Length, 12000 lb Working Load, 2-3/4 in Thread Length, Material Specification: ASME B18.15
| Weight | 3.39 kg |
|---|---|
| Dimensions | 7.3 × 4.0 × 0.9 cm |
| Bin Location 623C | 010E00800F |
| Bin Location 629C | Not Stocked |
| UPC | 662679490256 |
| Vendor Part # | J94030 |
| zip_update_date | 01/10/21 |
| Siemens Part # | 789 |
