267949022

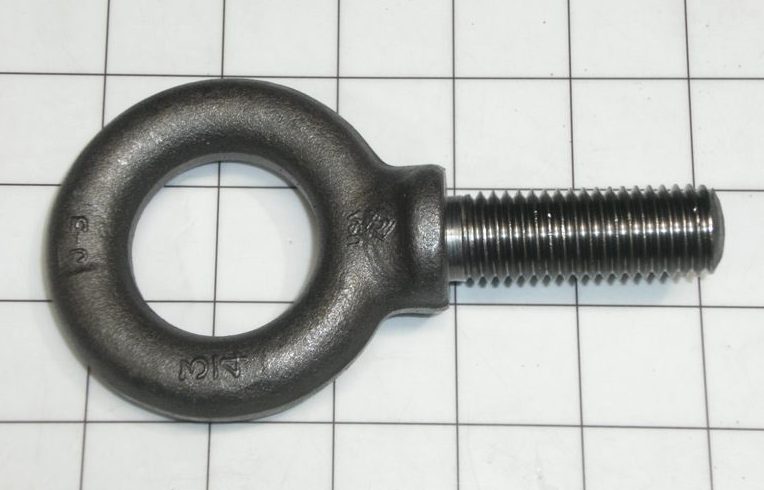

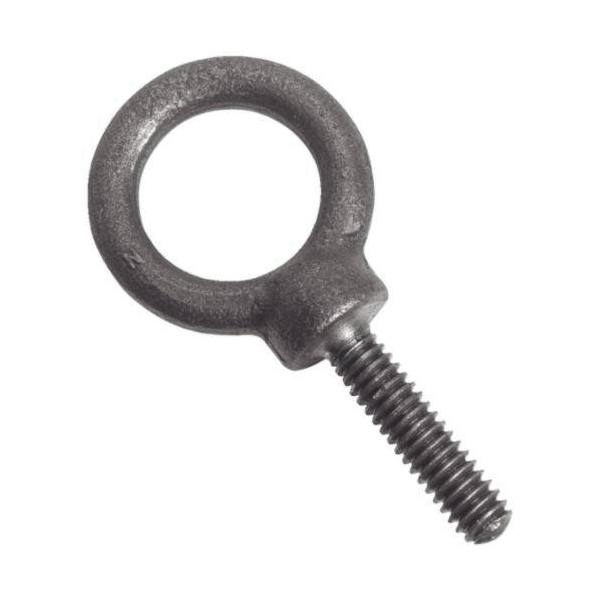

J94027 3/4″ SHOULDER EYE;BOLT
Proto Eye Bolt, Full Threaded Shoulder Pattern, Measurement System: Imperial, 3/4-10 Thread, 2 in Shank Length, Forged Steel, Plain, 1.44 to 1.56 in ID Eye, 2.81 in OD Eye, UNC-2A Thread, 5-1/2 in Overall Length, 5000 lb Working Load, 2 in Thread Length, Material Specification: ASME B18.15
| Weight | 1.02 kg |
|---|---|
| Dimensions | 5.0 × 1.0 × 1.0 cm |
| Bin Location 623C | 010E00800B |
| Bin Location 629C | Not Stocked |
| UPC | 662679490225 |
| Vendor Part # | J94027 |
| zip_update_date | 01/10/21 |
| Siemens Part # | 78019261 |
