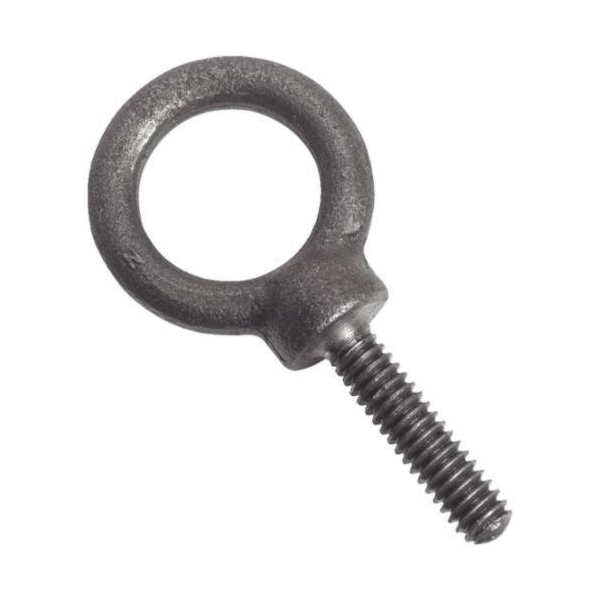

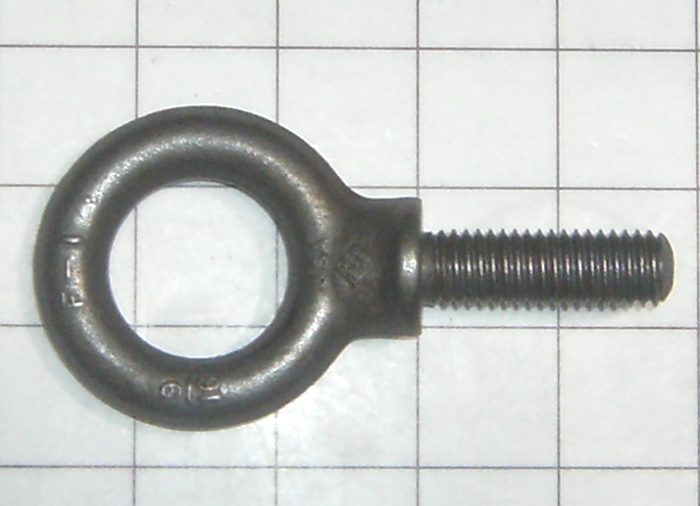

J94025 9/16″ SHOULDER;EYE BOLT
Proto Eye Bolt, Full Threaded Shoulder Pattern, Measurement System: Imperial, 9/16-12 Thread, 1-3/4 in Shank Length, Forged Steel, Plain, 1.31 to 1.44 in ID Eye, 2.56 in OD Eye, UNCI-2A Thread, 4-3/4 in Overall Length, 3200 lb Working Load, 1-3/4 in Thread Length, Material Specification: ASME B18.15
| Weight | 0.5 kg |
|---|---|
| Dimensions | 4.5 × 2.5 × 0.5 cm |
| Bin Location 623C | 010E00800F |
| Bin Location 629C | Not Stocked |
| Item Features | Angular loads should be avoided whenever possible, Certified mercury free, For angular loads of 15 deg or more, Maximum load ratings for eye bolts are drastically reduced when loading at an angle |
| UPC | 662679490201 |
| Vendor Part # | J94025 |
| zip_update_date | 01/10/21 |
| Siemens Part # | 4597 |
