267949017
J94022 3/8″ SHOULDER EYE;BOLT

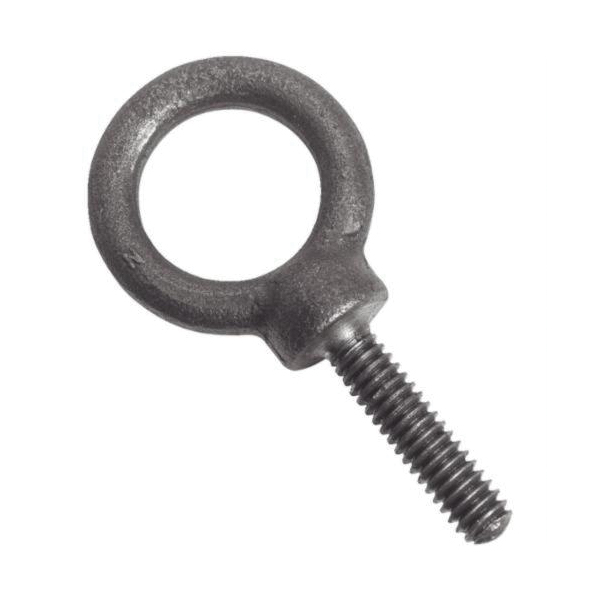

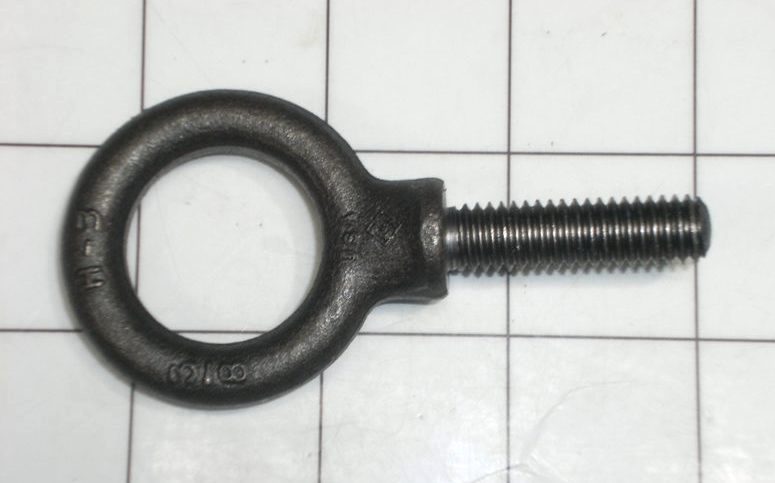

Proto Eye Bolt, Full Threaded Shoulder Pattern, Measurement System: Imperial, 3/8-16 Thread, 1-1/4 in Shank Length, Forged Steel, Plain, 0.94 to 1.06 in ID Eye, 1.69 in OD Eye, UNC-2A Thread, 3.47 in Overall Length, 1300 lb Working Load, 1-1/4 in Thread Length, Material Specification: ASME B18.15
| Weight | 0.17 kg |
|---|---|
| Dimensions | 3.3 × 1.5 × 0.3 cm |
| Bin Location 623C | 010E00800F |
| Bin Location 629C | Not Stocked |
| UPC | 662679490171 |
| Vendor Part # | J94022 |
| zip_update_date | 01/10/21 |
| Siemens Part # | 802 |
