052921593
S2160 2-1/4 SCREW PIN;SLING SHACKLE 55T”

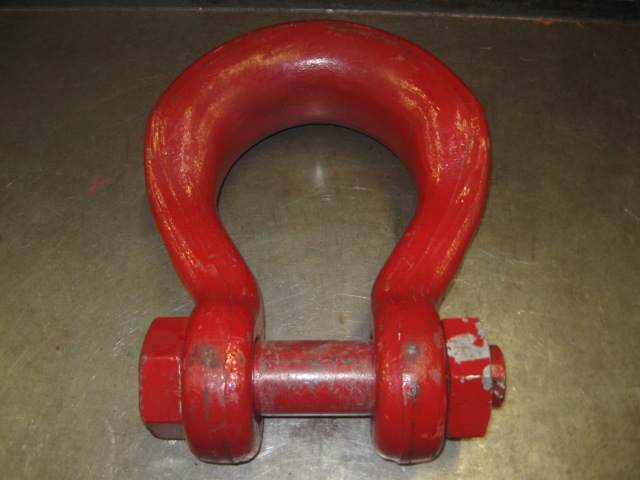

Crosby Wide Body Shackle, Series: S-2160, 55 ton Load, 4.3 in Size, 2-1/4 in Pin Diameter, 9.36 in Inner Length, 3-1/2 in Inner Width, 3-1/4 in Opening, 4.63 in Eye Outer, 15.63 in Overall Length, 10.36 in Overall Width, Forged Alloy Steel Body, Self-Colored
| Bin Location 623C | Not Stocked |
|---|---|
| Bin Location 629C | 0111B0400E |
| Item Features | "Can be used to connect synthetic web slings, synthetic round slings or wire rope slings", All ratings are in metric tons, embossed on side of bow, Increase in shackle bow radius provides minimum 58% gain in sling bearing surface and eliminates need for a thimble, Increases usable sling strength minimum of 15% and greatly improves life of wire rope slings |
| Siemens Part # | 78049934 |
| Vendor Part # | 1021593 |
| zip_update_date | 01/10/21 |
