052921174

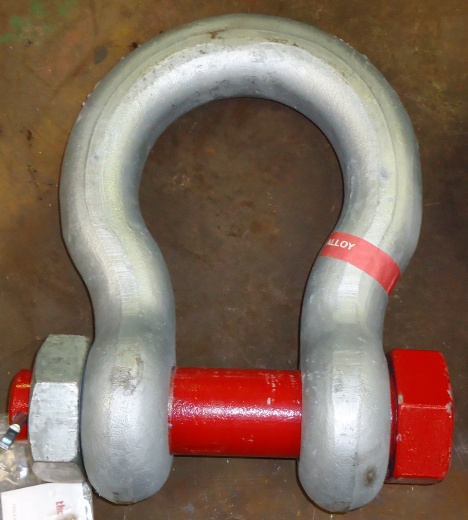

G2140 2-1/2 BOLT;ANCHOR SHACKLE 85T”
Crosby Anchor Shackle, Series: G-2140, 85 ton Load, 2-1/2 in Size, 2-3/4 in Pin Diameter, Bolt Pin, 10-1/2 in Inner Length, 7-1/4 in Inner Width, 4.12 in Opening, 5.81 in Eye Outer, 17.9 in Overall Length, Forged Alloy Steel Body, Alloy Pin, Hot Dipped Galvanized
| Bin Location 623C | 010U01200D |
|---|---|
| Bin Location 629C | Not Stocked |
| Item Features | 30, 40, 55 and 85 metric ton shackle bows are available galvanized or self colored with bolts that are galvanized and painted red, Alloy bows and alloy bolts, Forged alloy steel 2 through 200 metric tons, cast alloy steel 250 through 400 metric tons, meets performance requirements of grade 8 shackles, Working load limit is permanently shown on every shackle |
| Vendor Part # | 1021174 |
| zip_update_date | 01/10/21 |
| Siemens Part # | 78046859 |
