039143482

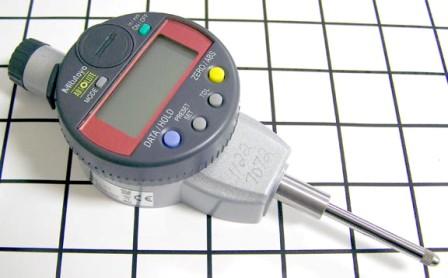

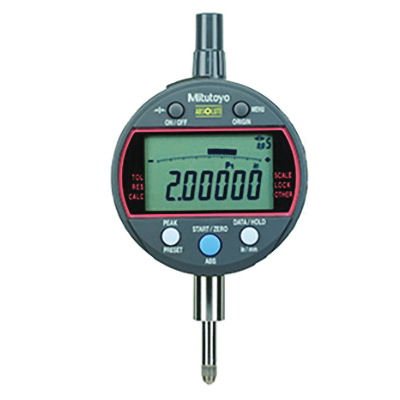

543-592B 0-1″ CALC TYPE;INDICATOR
Mitutoyo ABSOLUTE Digimatic Indicator, Calculation Type Flat Back Inch/Metric, Series: ID-C 543, 1 in/25.4 mm Measuring, 0.00012 in, 0.003 mm Accuracy, 0.00001 to 0.05 in/0.0002 to 1 mm Resolution, LCD Display, /=2 N Measuring Force, CR2032 Battery
| Weight | 0.4188 kg |
|---|---|
| Bin Location 623C | 0100OAN000 |
| Bin Location 629C | Not Stocked |
| Item Features | "Fast measurement frequency allows the user to increase the number of readings per second from 10 to 50, allowing higher accuracy measurements of TIR and MAX/MIN", An analog bar provides easy to read values when scanning for max, min and TIR values, Improved parameter setting software makes easy to set all available parameters and determine and upload the proper coefficients for calculation, The new calculation type digimatic indicator features both a key lock and parameter lock to prevent accidental changing of settings during operation |
| UPC | 603908594239 |
| Vendor Part # | 543-592B |
| zip_update_date | 01/10/21 |
| Siemens Part # | 78050973 |
